Home > Product > ELISA Primacu > Human Programmed Cell Death 1 Ligand 2, PDCD1LG2 Primacu™ ELISA Kit

Human Programmed Cell Death 1 Ligand 2, PDCD1LG2 Primacu™ ELISA Kit

Human Programmed Cell Death 1 Ligand 2, PDCD1LG2 Primacu™ ELISA Kit

Product Summary

Size: 5*96T,96T,15*96T

Sensitivity: 5.73 pg/mL

Detection range: 25-1600 pg/mL

Sample type: Serum, plasma, cell culture supernates

Reactive with: Human

Product Summary

Size: 5*96T,96T,15*96T

Sensitivity: 5.73 pg/mL

Detection range: 25-1600 pg/mL

Sample type: Serum, plasma, cell culture supernates

Reactive with: Human

Product overview

Full product name

Programmed cell death 1 ligand 2

Code

BPE060

Assay type

Sandwich

Size

5*96T,96T,15*96T

Sensitivity

5.73 pg/mL

Detection range

25-1600 pg/mL

Sample type

Serum, plasma, cell culture supernates

Species

Human

Storage

2-8°C

Assay time

3.5h

Background

Programmed death ligand 2 (PD-L2), also referred to as B7-DC and CD273, is a member of the B7 family of proteins including B7-1, B7-2, B7-H2, B7-H1 (PD-L1), and B7-H3. PD-L2 is a type I membrane protein and structurally consists of an extracellular region containing one V-like and one C-like Ig domain, a transmembrane region, and a short cytoplasmic domain. PD-L2 is expressed on antigen presenting cells, placental endothelium and medullary thymic epithelial cells, and can be induced by LPS in B cells, INF-γ in monocytes, or LPS plus IFN-γ in dendritic cells. The CD28 and B7 protein families are critical regulators of immune responses. PD-L2 and PD-L1 are two ligands for PD-1, member of the CD28/CTLA4 family expressed on activated lymphoid cells, and thus provide signals for regulating T cell activation and immune tolerance. The interaction of B7-DC/PD-1 exhibited a 2-6-fold higher affinity compared with the interaction of B7-H1/PD-1. Cancer Immunotherapy Co-inhibitory Immune Checkpoint Targets Immune Checkpoint Immune Checkpoint Detection: Antibodies Immune Checkpoint Detection: ELISA Antibodies Immune Checkpoint Detection: FCM Antibodies Immune Checkpoint Detection: WB Antibodies Immune Checkpoint Proteins Immune Checkpoint Targets Immunotherapy Targeted Therapy

UniProt accession

MASS(Da)

30957

GeneID

80380

Synonyms

B7DC;CD273;PDCD1L2;PDL2

Gene names

PDCD1LG2

Research area

Cancer,Immunology

Target protein

PD-L2

Components

Components Quantity
Pre-coated ELISA Plate 12 × 8 well strips × 1
Standard Solution 0.2mL × 1 vail
Dilution Buffer 20mL × 1 vail
Stop Solution 6mL × 1 vail
Substrate Solution A 12mL × 1 vail
Substrate Solution B 12mL × 1 vail
Wash Buffer Concentrate (25x) 20mL × 1 vail
Detection Antibody Concentrate 0.6mL × 1 vail

Protocol data

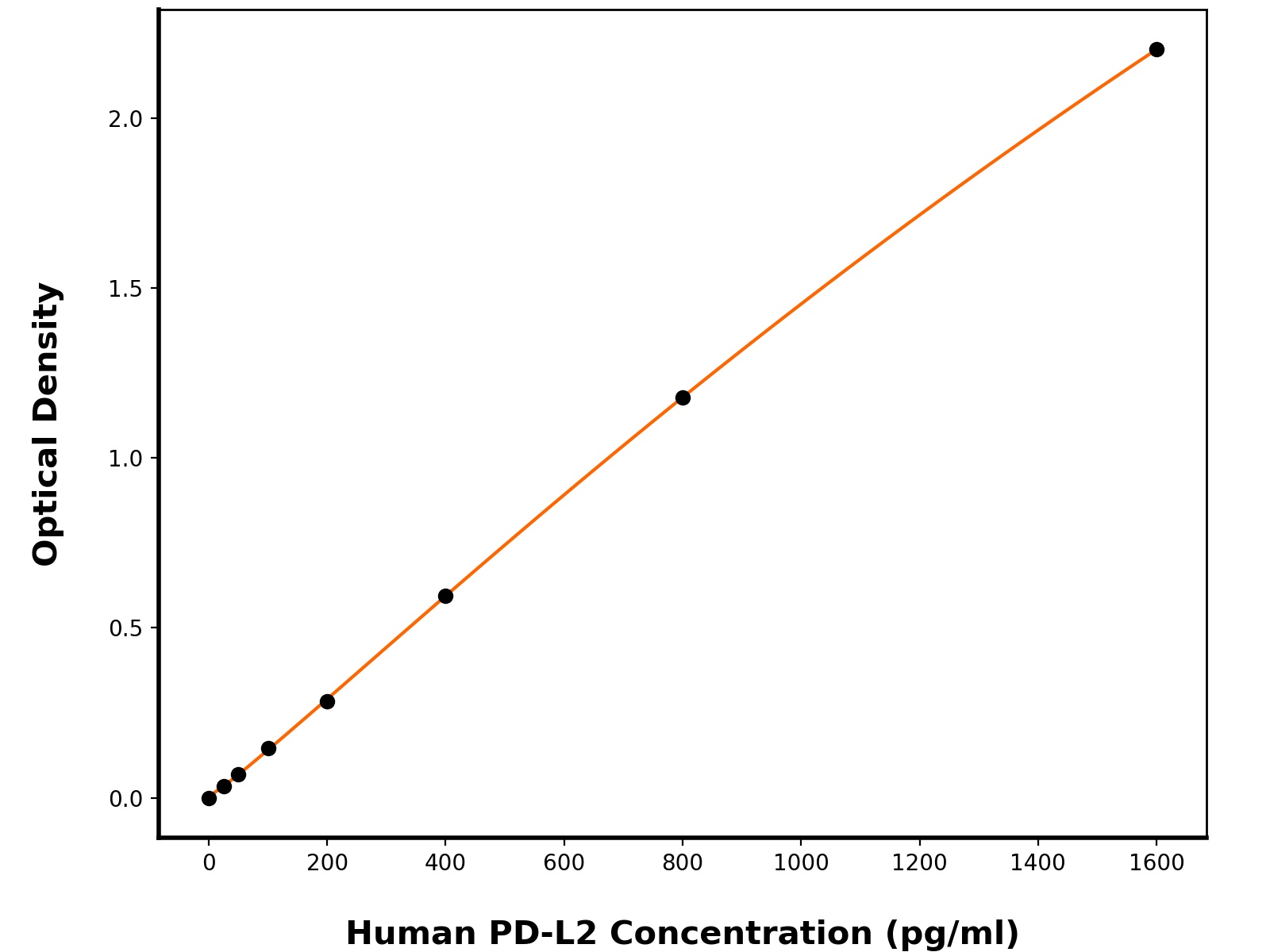

These standard curves of BPE060 are provided for demonstration only. A standard curve should be generated for each set of samples assayed.

Concentration O.D. Average Corrected
1600 pg/ml 2.372 2.303 2.202
2.233
800 pg/ml 1.248 1.28 1.179
1.312
400 pg/ml 0.729 0.696 0.595
0.662
200 pg/ml 0.359 0.386 0.285
0.412
100 pg/ml 0.244 0.246 0.145
0.247
50 pg/ml 0.178 0.171 0.07
0.163
25 pg/ml 0.143 0.136 0.035
0.128
0 pg/ml 0.107 0.101 0
0.094

Precision

We measured random samples of BPE060 within the same batch/lot to ensure the consistency of the kits' performances.

Intra/Inter-Assay Sample n Mean Standard Deviation CV%
Intra-assay 1 20 75.3 5.4 7.1
Intra-assay 2 20 188 8.2 4.3
Intra-assay 3 20 941 35.8 3.8
Inter-assay 1 20 75.5 4.8 6.4
Inter-assay 2 20 186 17.2 9.2
Inter-assay 3 20 947 76.4 8.1

Protocols

References

Customer reviews and Q&As

No reviews
No reviews

Associated products

  • Size

    Code

    Price

  • 5*96T

    BPE060

    $2040.00

  • 96T

    BPE060

    $480.00

  • 15*96T

    BPE060

    $5400.00

Add to Cart

Lead time: Within two weeks
