Human Cd209 Antigen, CD209 Primacu™ ELISA Kit

Human Cd209 Antigen, CD209 Primacu™ ELISA Kit

Product Summary

Size: 5*96T,96T,15*96T

Sensitivity: 4.35 pg/mL

Detection range: 23.44-1500 pg/mL

Sample type: Serum, plasma, cell culture supernates

Reactive with: Human

Product Summary

Size: 5*96T,96T,15*96T

Sensitivity: 4.35 pg/mL

Detection range: 23.44-1500 pg/mL

Sample type: Serum, plasma, cell culture supernates

Reactive with: Human

Product overview

Full product name

CD209 antigen

Code

BPE043

Assay type

Sandwich

Size

5*96T,96T,15*96T

Sensitivity

4.35 pg/mL

Detection range

23.44-1500 pg/mL

Sample type

Serum, plasma, cell culture supernates

Species

Human

Storage

2-8°C

Assay time

3.5h

Background

Dendritic cell (DC)-specific intercellular adhesion molecule 3 (ICAM-3) grabbing nonintegrin (DC-SIGN), also known as CD209, is a type II transmembrane protein on DCs with a C-type lectin extracellular domain, is capable of binding ICAM-3 on resting T cells in the secondary lymphoid organs, providing the initial contact between these cells during the establishment of cell-mediated immunity. It is not only a pattern recognition receptor but implicated in immunoregulation of DCs. It has an important role in mediating DC adhesion, migration, inflammation, activating primary T cell, triggering immune response and participating in immune escape of pathogens and tumors. DC-SIGN also mediates the capture and internalization of viral, bacterial, and fungal pathogens by dendritic cells, such as HIV-1, Ebola virus, cytomegalovirus, Dengue virus, and hepatitis C virus. DC-SIGN is unique in that it regulates adhesion processes, such as DC trafficking and T-cell synapse formation, as well as antigen capture. Moreover, even though several C-type lectins have been shown to bind HIV-1, DC-SIGN does not only capture HIV-1 but also protects it in early endosomes allowing HIV-1 transport by DC to lymphoid tissues, where it enhances trans infection of T cells. Cancer Immunotherapy Immune Checkpoint Immunotherapy Targeted Therapy

UniProt accession

MASS(Da)

45775

GeneID

30835

Synonyms

CLEC4L

Gene names

CD209

Research area

Immunology,Microbiology,Signal transduction

Target protein

DC-SIGN

Components

Components Quantity
Pre-coated ELISA Plate 12 × 8 well strips × 1
Standard Solution 0.2mL × 1 vail
Dilution Buffer 20mL × 1 vail
Stop Solution 6mL × 1 vail
Substrate Solution A 12mL × 1 vail
Substrate Solution B 12mL × 1 vail
Wash Buffer Concentrate (25x) 20mL × 1 vail
Detection Antibody Concentrate 0.6mL × 1 vail

Protocol data

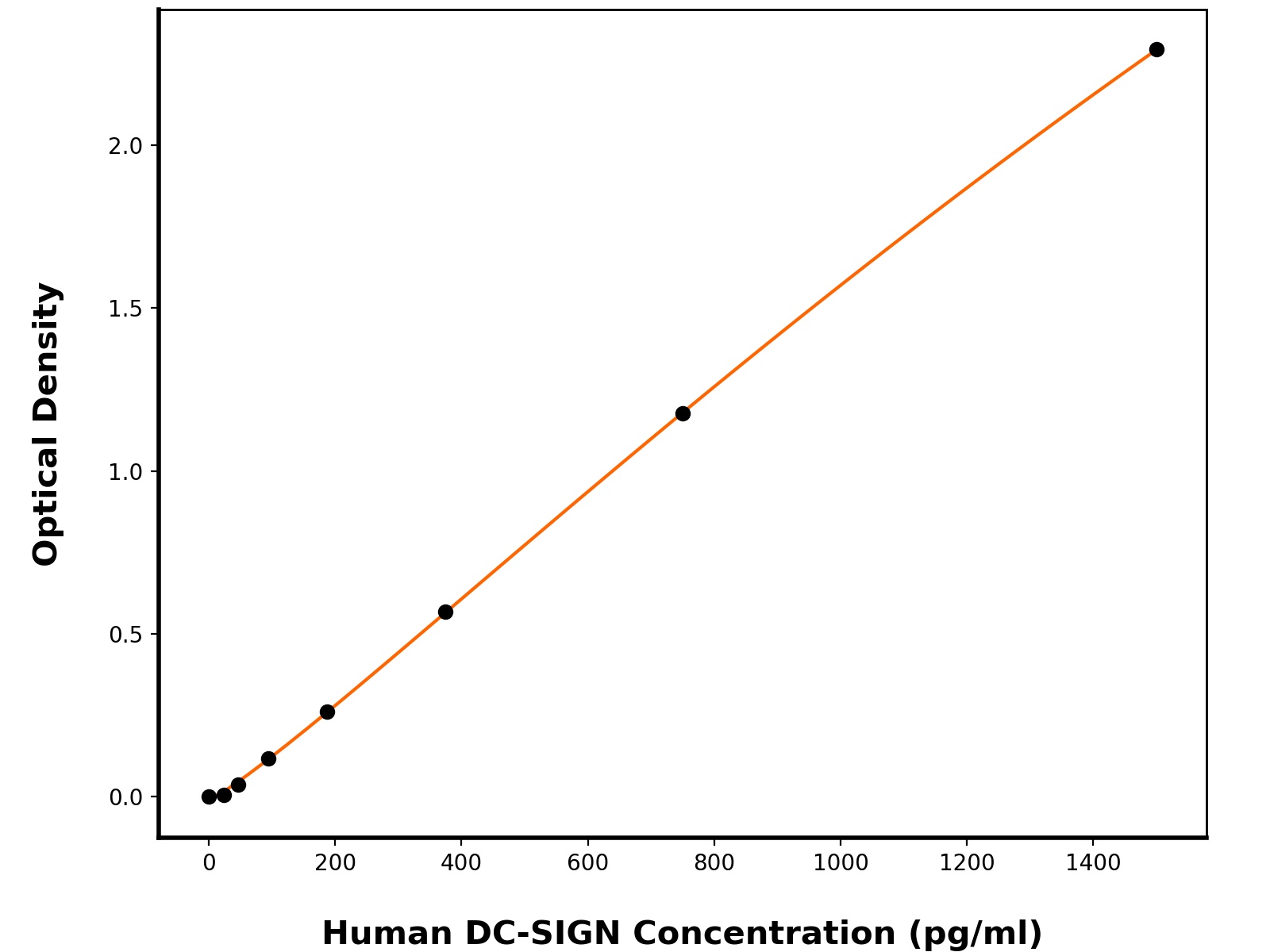

These standard curves of BPE043 are provided for demonstration only. A standard curve should be generated for each set of samples assayed.

Concentration O.D. Average Corrected
1500 pg/ml 2.544 2.426 2.295
2.309
750 pg/ml 1.314 1.307 1.176
1.301
375 pg/ml 0.692 0.699 0.568
0.707
187.5 pg/ml 0.39 0.392 0.261
0.395
93.75 pg/ml 0.242 0.247 0.116
0.253
46.875 pg/ml 0.172 0.166 0.035
0.161
23.4375 pg/ml 0.14 0.136 0.005
0.133
0 pg/ml 0.13 0.131 0
0.133

Precision

We measured random samples of BPE043 within the same batch/lot to ensure the consistency of the kits' performances.

Intra/Inter-Assay Sample n Mean Standard Deviation CV%
Intra-assay 1 20 94.6 6.8 7.2
Intra-assay 2 20 473 29.7 6.3
Intra-assay 3 20 1051 66 6.3
Inter-assay 1 20 95 6.1 6.4
Inter-assay 2 20 474 25.6 5.4
Inter-assay 3 20 1049 69.9 6.7
