Home > Product > ELISA Primacu > Human Programmed Cell Death Protein 1, PDCD1 Primacu™ ELISA Kit

Human Programmed Cell Death Protein 1, PDCD1 Primacu™ ELISA Kit

Human Programmed Cell Death Protein 1, PDCD1 Primacu™ ELISA Kit

Product Summary

Size: 5*96T,96T,15*96T

Sensitivity: 1.46 pg/mL

Detection range: 3.91-250 pg/mL

Sample type: Serum, plasma, cell culture supernates

Reactive with: Human

Product Summary

Size: 5*96T,96T,15*96T

Sensitivity: 1.46 pg/mL

Detection range: 3.91-250 pg/mL

Sample type: Serum, plasma, cell culture supernates

Reactive with: Human

Product overview

Full product name

Programmed cell death protein 1

Code

BPE396

Assay type

Sandwich

Size

5*96T,96T,15*96T

Sensitivity

1.46 pg/mL

Detection range

3.91-250 pg/mL

Sample type

Serum, plasma, cell culture supernates

Species

Human

Storage

2-8°C

Assay time

3.5h

Background

Programmed cell death 1, also known as PDCD1, is a type I transmembrane glycoprotein, and is an immunoreceptor belonging to the CD28/CTLA-4 family negatively regulates antigen receptor signaling by recruiting protein tyrosine phosphatase, SHP-2 upon interacting with either of two ligands, PD-L1 or PD-L2. PD1 inhibits the T-cell proliferation and production of related cytokines including IL-1, IL-4, IL-10 and IFN-γ by suppressing the activation and transduction of PI3K/AKT pathway. In addition, coligation of PD1 inhibits BCR-mediating signal by dephosphorylating key signal transducer. PD1 has been suggested to be involved in lymphocyte clonal selection and peripheral tolerance, and thus contributes to the prevention of autoimmune diseases. Furthermore, PD1 is shown to be a regulator of virus-specific CD8+ T cell survival in HIV infection. As a cell surface molecule, PDCD1 regulates the adaptive immune response. Engagement of PD-1 by its ligands PD-L1 or PD-L2 transduces a signal that inhibits T-cell proliferation, cytokine production, and cytolytic function.

UniProt accession

MASS(Da)

31647

GeneID

5133

Synonyms

PD1

Gene names

PDCD1

Research area

Immunology,Cancer,Cell biology

Target protein

PD-1

Components

Components Quantity
Pre-coated ELISA Plate 12 × 8 well strips × 1
Standard Solution 0.2mL × 1 vail
Dilution Buffer 20mL × 1 vail
Stop Solution 6mL × 1 vail
Substrate Solution A 12mL × 1 vail
Substrate Solution B 12mL × 1 vail
Wash Buffer Concentrate (25x) 20mL × 1 vail
Detection Antibody Concentrate 0.6mL × 1 vail

Protocol data

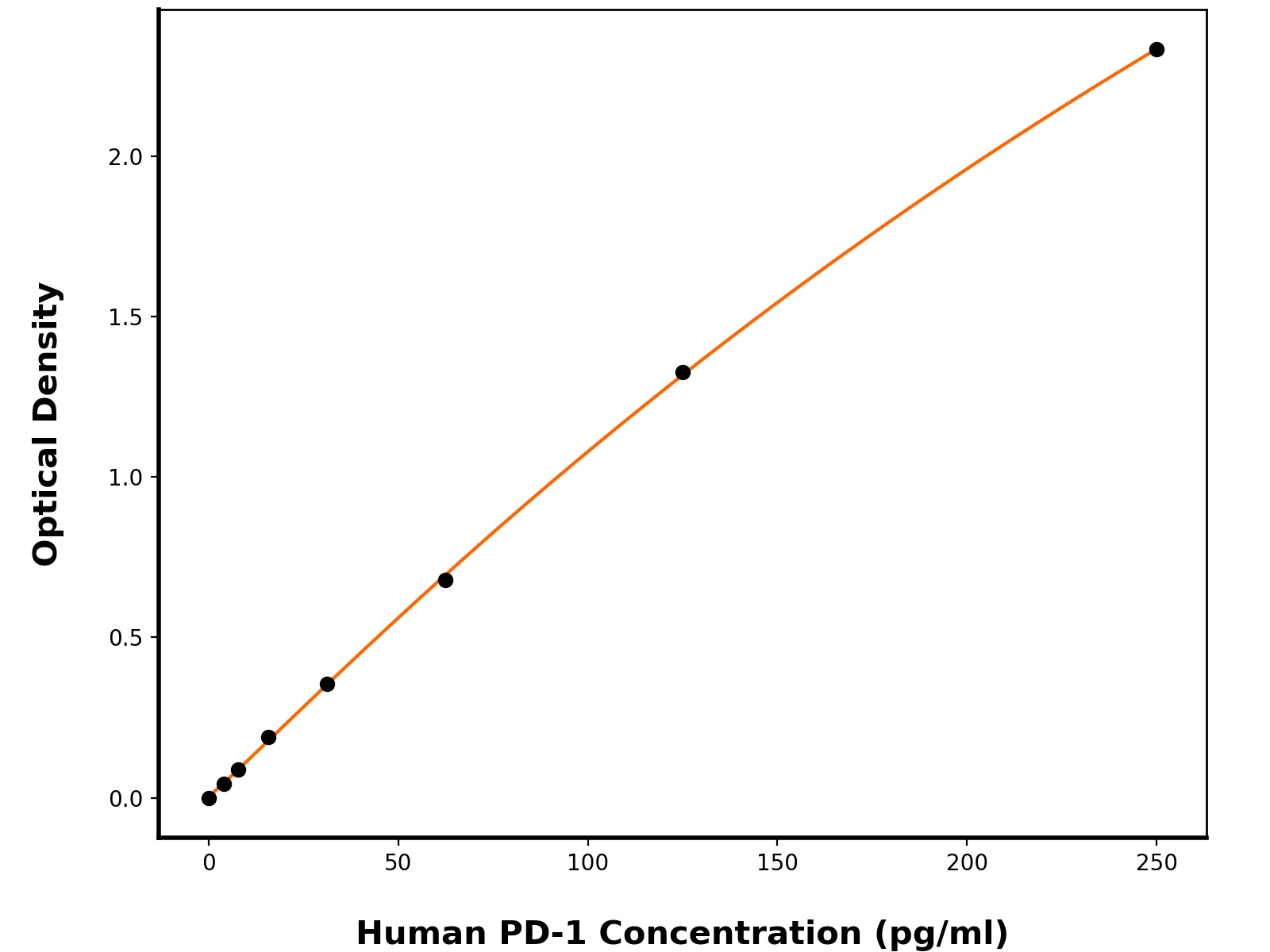

These standard curves of BPE396 are provided for demonstration only. A standard curve should be generated for each set of samples assayed.

Concentration O.D. Average Corrected
250 pg/ml 2.348 2.444 2.332
2.539
125 pg/ml 1.462 1.438 1.326
1.414
62.5 pg/ml 0.751 0.792 0.68
0.833
31.25 pg/ml 0.466 0.468 0.356
0.47
15.625 pg/ml 0.286 0.301 0.189
0.316
7.8125 pg/ml 0.209 0.199 0.087
0.189
3.90625 pg/ml 0.149 0.155 0.043
0.161
0 pg/ml 0.119 0.112 0
0.105

Precision

We measured random samples of BPE396 within the same batch/lot to ensure the consistency of the kits' performances.

Intra/Inter-Assay Sample n Mean Standard Deviation CV%
Intra-assay 1 20 15.2 0.61 4
Intra-assay 2 20 36.2 1 2.8
Intra-assay 3 20 157 6.2 4
Inter-assay 1 20 15.4 1.5 10
Inter-assay 2 20 36.3 3.3 9.2
Inter-assay 3 20 159 14.1 8.9

Protocols

References

Customer reviews and Q&As

No reviews
No reviews

Associated products

  • Size

    Code

    Price

  • 5*96T

    BPE396

    $2040.00

  • 96T

    BPE396

    $480.00

  • 15*96T

    BPE396

    $5400.00

Add to Cart

Lead time: Within two weeks

We are continuously updating our ELISA Primacu catalog with advanced verified products. If you can not download the datasheet please send your request of our latest datasheet.
